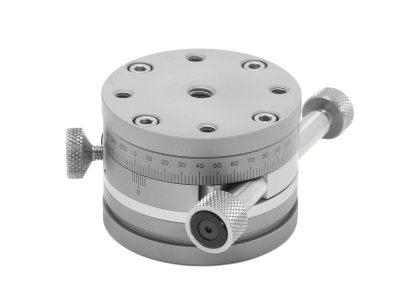

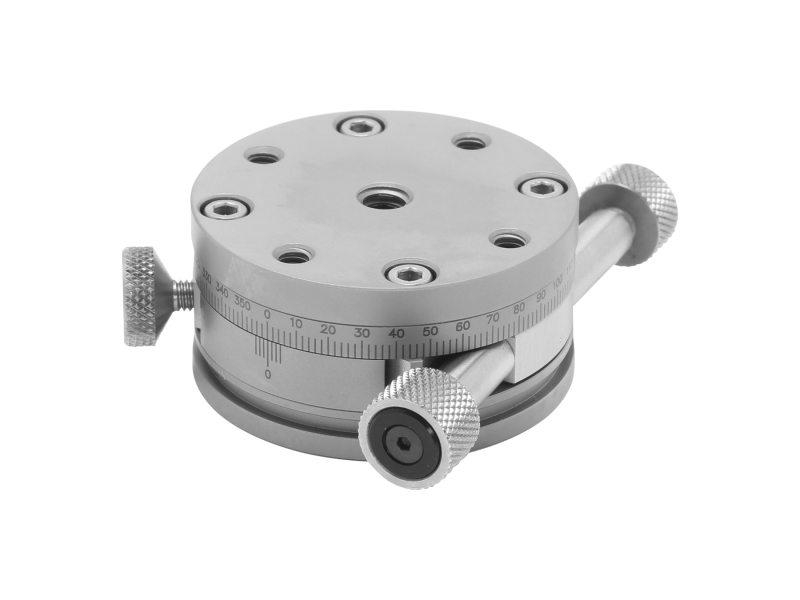

UTR シリーズ スチール製精密回転ステージ

- 高耐荷重のスチール製
- ロック機構付きで360°の粗調と4°の微調が可能
- 感度6秒以下
- 4種類のサイズ
- 薄型モデル

UTRシリーズの汎用精密回転ステージは、部品を目標の角度に近い角度まで回転させたあと、さらに角度を微調整するのに適しています。堅固なプラットフォームは、研究用途の各種部品の装着や精密な調整に使用できます。硬質のベアリングは精密研磨したスチールガイドに予圧をかけられて装着されているため、滑らかで正確な軌跡が得られ、偏心も最小限に抑えられます。側面に設置されているノブを外すと、ステージを360°自由に回転させることができます。目標の角度に近い角度にセットしたあと、バックラッシュのない手動ドライブで4度の範囲で微調整できます。回転ステージの側面、およびステージ本体のバーニアに目盛が刻まれているので、角度を1分単位の分解能で測定できます (UTR46では30分単位)。

製品番号

※各製品番号をクリックすると、Newport米国サイトが開きます。図面や技術情報をご覧になれます。
※記載の標準納期は目安です。詳細はお問合せください。
製品番号
備考
標準納期
税抜価格

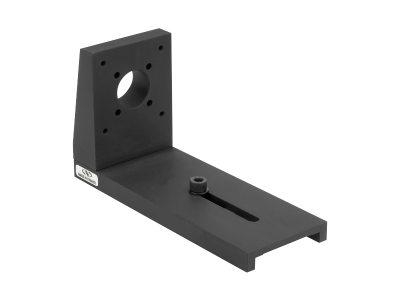

90 degree Angle Bracket, Adjustable, EQ5.03
お問合せ
68,680円
90 degree Angle Bracket, Adjustable, EQ8.03
お問合せ
83,310円
90 degree Angle Bracket, Adjustable, EQ120.03
お問合せ
97,010円

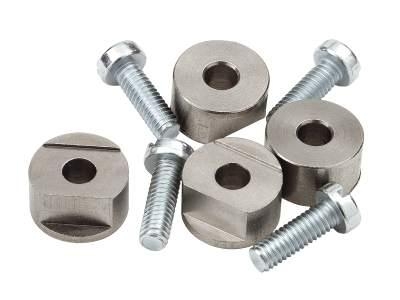

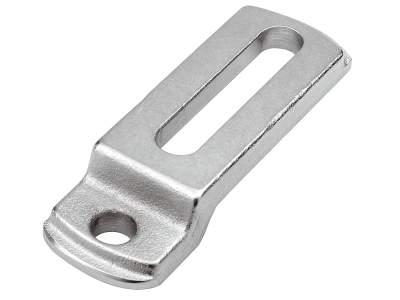

Mounting Bridle, U Series to Optical Table
お問合せ
3,090円

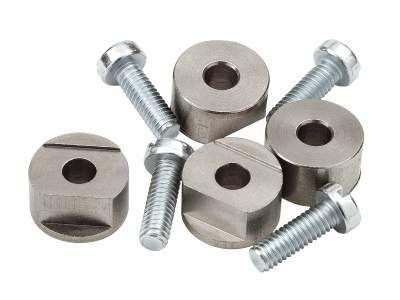

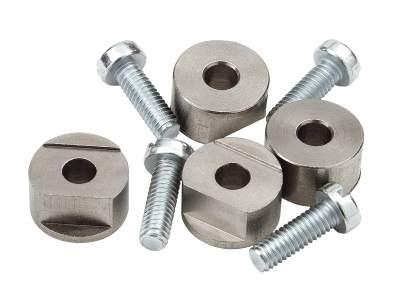

Mounting Bridle, M-UTR46 to M-MVN50 or M-UMR5, 6.5mm Height, Qty 4
お問合せ
9,190円
Mounting Bridle, M-UTR46S to M-MVN50 or M-UMR5, 4.5mm Height, Qty 4
お問合せ
9,190円
Mounting Bridle, M-UTR80 to M-MVN80, M-TGN80 or M-UMR8, 7.6 mm Height, Qty 4
お問合せ
9,190円
Mounting Bridle,M-UTR80S to M-MVN80, M-TGN80 or M-UMR8, 5.6 mm Height, Qty 4
お問合せ
10,130円
Mounting Bridle, M-UTR120 to M-MVN120, M-TGN120 or M-UMR12, Qty 4
お問合せ
9,190円
Mounting Bridle, M-UTR160 to M-TGN160, Qty 4
お問合せ
10,130円

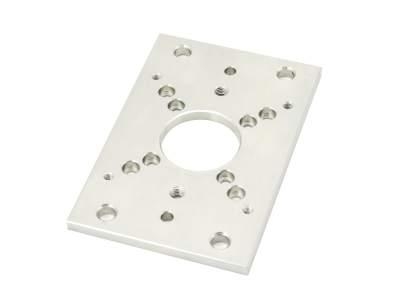

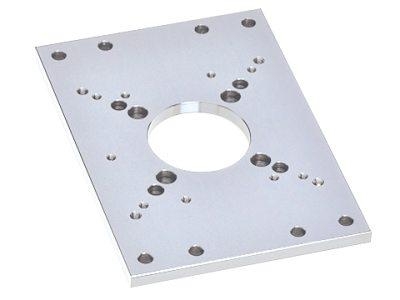

Base Plate, Used with UMR12 Series, MVN120 & UTR120 Series
お問合せ
26,830円

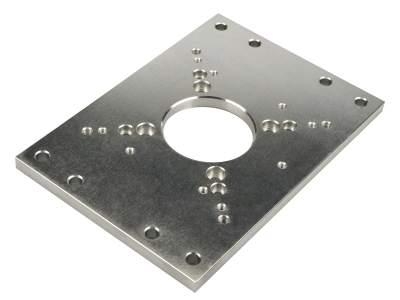

Base Plate, PBN Series, Use with UTR160 Series Rotation Stages
お問合せ
39,400円

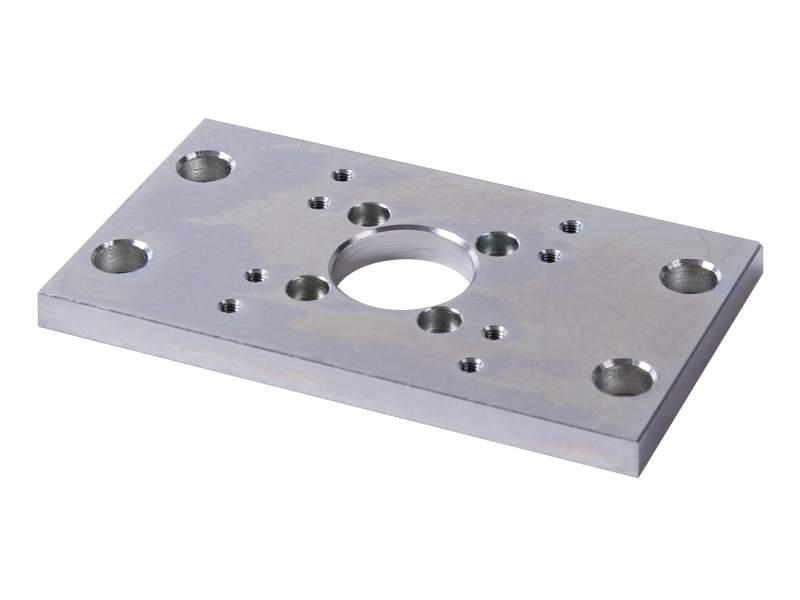

Base Plate, Used with UMR5 Series, MVN50 & UTR46 Series
お問合せ
16,320円
Base Plate, Used with UMR8 Series, MVN80 & UTR80 Series
お問合せ
21,390円

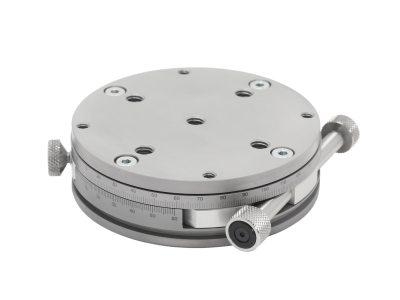

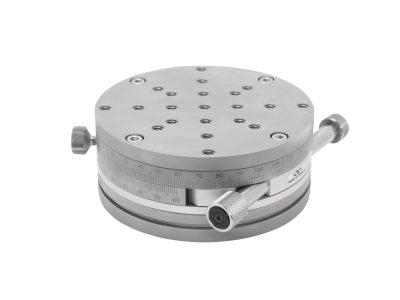

Manual Rotation Stage, Steel, 119.5 mm Diameter, 4° Fine Travel, M6
お問合せ
297,000円

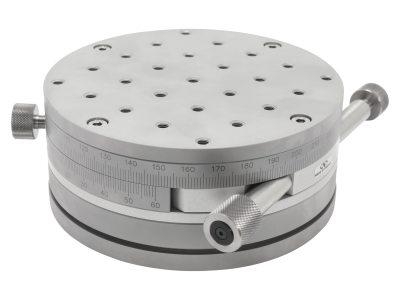

Manual Rotation Stage, Steel, 159 mm Diameter, 4° Fine Travel, M6
お問合せ
403,000円

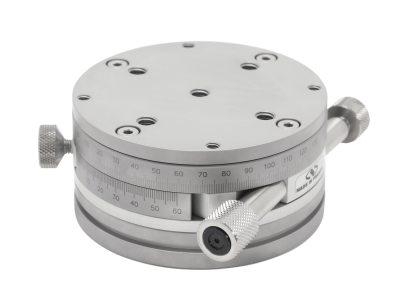

Manual Rotation Stage, Steel, 46 mm Diameter, 4° Fine Travel, M4 and M6
お問合せ
164,000円
Manual Rotation Stage, Steel, 46 mm Diameter, 23 mm Height, 4° Fine, M4 & M6
お問合せ
164,000円
Manual Rotation Stage, Steel, 79 mm Diameter, 4° Fine Travel, M4 and M6
お問合せ
196,000円
Manual Rotation Stage, Steel, 79 mm Diameter, 23 mm Height, 4° Fine, M4 & M6
お問合せ
196,000円
